Urtopia Chord
Meet the new city ebike 2023 - the smartest electric town bike for urban adventurers. With a range of up to 75 miles, this ebike is ideal for commuting or leisurely rides. With the extra safety and convenience that comes with smart features, the Chord Ebike is your first step into a new era of cycling.


Technical Specifications

Smart
Smartbar features
Voice control, fingerprint start, LED dot-matrix display, haptic interaction, bluetooth music, built-in navigation, GPS tracking, OTA upgrade

Connectivity
Connect Service with 4G, Bluetooth & WiFi

IoT sensors
Accelerometer, gyroscope, torque

App
iOS & Android

Power
Motor
Customized rear hub, 36 V 350 W, 45 N·m

Speed modes
Pedal, Eco, Comfort, Sport, Turbo

Top speed (assisted)
20 mph

Range
31-75 miles

Removable battery
352.8 Wh Samsung Li-ion, 3-hr quick charge

General
Weight
46 lbs.

Load-bearing capacity
287 lbs.

Size
Chord: 5‘7’‘ – 6’5‘’

Chord X: 5‘3’‘ – 6’1‘’

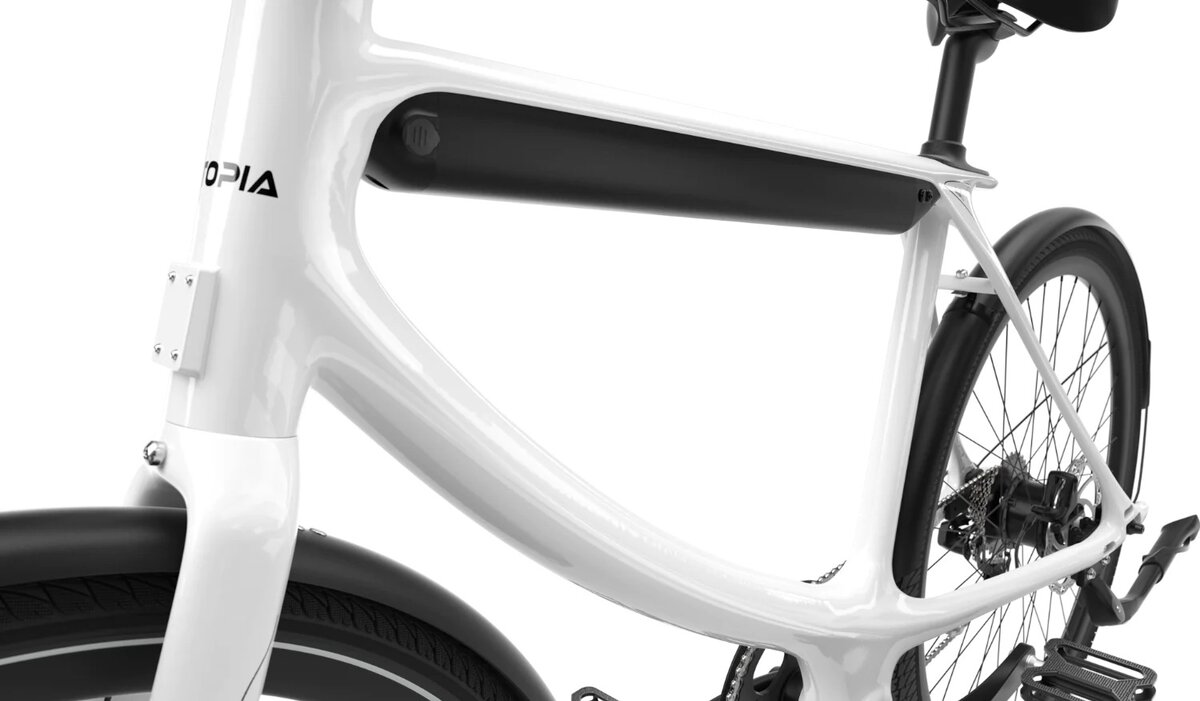

Body material
6061 aluminum with liquid forging technology.

Brakes
TEKTRO hydraulic disc brakes

Gearing
8-Speed Shimano rear derailleur

Integrated lights
StVZO headlight; rear light

Wheels
700C (ISO 622 mm BSD), inner rim 19 mm

Tires
CST C1720, 700 x 42C with reflective strips

Size & Fit
?
Chord
Chord X
A. Standover height

670 mm
B. Adjustable seat range

80 mm
C. Handlebar grips height

1100-1130 mm
D. Seat tube length

327 mm
E. Wheelbase

1094 mm
F. Overall length

1800 mm
G. Wheel diameter

700 mm
H. Top tube length (effective)

620 mm
I. Head tube length

200 mm
J. Headset height

90-120 mm
