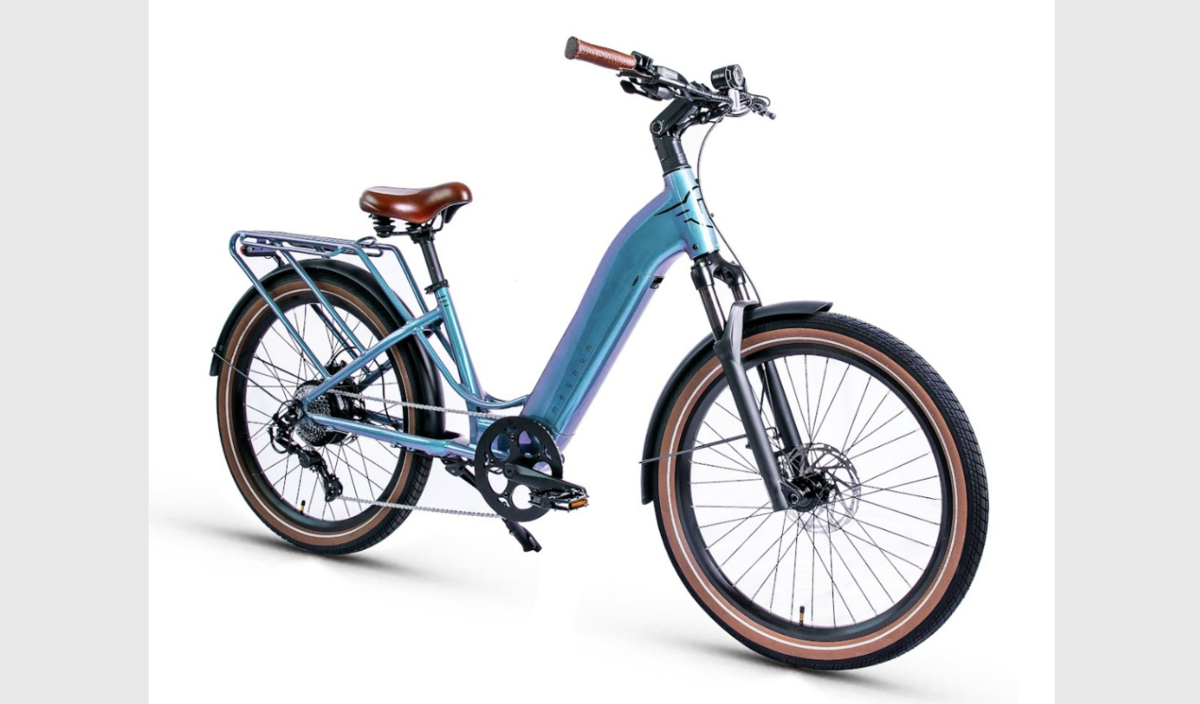

The Magnum Wave
A bike that redefines comfort cruising! The Magnum Wave combines beloved pedal-forward geometry with cutting-edge features for style-conscious riders. The unisex low-step frame accommodates all riders while the torque sensor delivers smooth, intuitive power for effortless cruising.

Highlights
Category
Cruiser
Class
Can be configured to a Class 1, 2, or 3 E-Bike
Frame Type
Low-step
Seating
Cruise
Perfect For
Beach Paths / City Streets / Leisurely Rides

THE BATTERY.
The heart of the Magnum Wave is the integrated, long-range 48V / 15Ah / 720Wh battery that powers rides up to 50 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

15Ah
50 miles (80 Kilometers) Max Range

6.5 Hours Charge Time


CRUISE WITH UNMATCHED COMFORT AND STYLE
Advanced Pedal-Forward Geometry
The all-new Magnum Wave takes our signature pedal-forward design to the next level. With an optimized frame geometry that positions the pedals further ahead, you'll experience the most comfortable, confidence-inspiring ride we've ever created. This isn't just our best cruiser yet—it's comfort redefined.

Component Overview
Electronic Details
Motor Brand

Sutto
Motor Type

Hub-Drive; brushless; planetary geared
Motor Nominal Output

500 Watts
Motor Peak Output

800 Watts
Battery Voltage

48 Volts
Battery Ah

15Ah
Battery Wh

720Wh
Battery Chemistry

Samsung 21700, Li-NMC, UL2271 & UL2849 Certified
Battery Charge Time (from empty)

6.5 Hours
Minimum Range

15 Miles (24 Kilometers)
Maximum Range

50 miles (80 Kilometers)
Display Type

Magnum VeloFox Stem-Integrated Color Display
Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time, 24hr clock
Drive Mode

Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
Top Speed

Up to 28 mph with Pedal Assist, 20 mph with Throttle
Lights

Integrated 80 lumen front light and multi-function rear light (flashes when brakes are pulled)
Mechanical Details
Frame material

Aluminum Alloy
Frame Type

Pedal forward, Low step, Integrated battery
Fork Details

26inch wheel, thru-axle, 100mm travel, w/ lock out
Gearing details

Microshift Acolyte shifter, derailleur, 8 speed w/ clutch
Shifter Details

Microshift Acolyte 8-speed shifter
Crank

Aluminum Alloy 170mm
Pedals

Wide alloy Platform with Reflectors
Stem

Zoom, adjustable, integrated display mount
Brakes

Tektro Hydraulic 180mm rotors
Grips

Faux leather ergonomic
Saddle

Selle Royal Cruiser w/ elastomer springs
Tire Brand

Innova 26 x 2.4 multi surface w/ Siping
Wheel size

26" x 2.4"
Fenders

Front and rear full coverage fenders included
Chain

KMC Z chain, 8 speed
Measurements
Seat Tube

23.5” (59.5cm)
Reach

25.5” (64.5cm)
Stand Over Height

17” (43cm)
Virtual Top Tube Length

23” (58.4cm)
Min Saddle Height

30” (76cm)
Max Saddle Height

37” (94cm)
Width

28” (71cm)
Wheelbase

50” (127cm)
Length

76” (193cm)
Total Weight

71 lbs (35 kg)
Battery Weight

9.3 lbs (4.2 kg)
Recommended Minimum Rider Height

4' 10”
Max Load Capacity

330 lbs (150kg)
What’s Included
Kickstand

Center-Mounted Single Side Adjustable Length
Bell

Bell with AirTag/M-Tag compatibility (tracking device sold separately)
Charger

Includes 54.6V 2A Charger
Front Rack

Compatible with Magnum Multi-Purpose Cargo Basket (basket sold separately)
Rear Rack

Integrated, Welded Rear Rack 25KG max load
Fenders

Full Coverage Front and Rear Fenders Included
Accessory Mounts

Includes Built-In Head Tube and Top Tube Accessory Mounts
