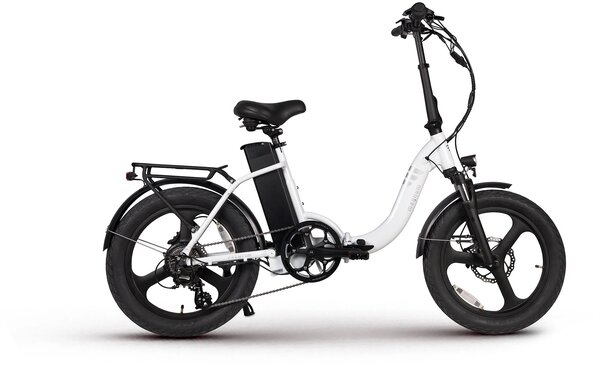

Magnum Bikes Premium 3 Low Step - 2023

Magnum Bikes Premium 3 Low Step
  • Color: Black
  • Color: White
$1,699.00
$1,699.00 - $1,799.00
Color: Black
Please select options Unavailable
Order now and pick up in-store for free

Details

The Magnum
Premium 3 Low Step
The Premium 3 is our newest iteration of our bestselling Premium line. We kept the beloved folding frame and 20 inch commuter friendly tires but upgraded the electric system to our latest and greatest version and we blew up the tires from 20X2.15 to a full 3 inch tire for better suspension and stability. The smaller frame and weight are why city commuters love to ride this bike.

Highlights
Category
Folding
Class
Can be configured to a Class 1, 2, or 3 E-Bike.
Frame Type
Low-step
Seating
Relaxed
Perfect For
Paved / Light Trails / Recreation

THE BATTERY.
The heart of the Premium 3 is the integrated, long-range 48V / 15.6Ah / 749Wh Samsung battery that powers rides up to 50 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

15Ah
50 miles (80 Kilometers) Max Range

7.5 Hours Charge Time


CONVENIENT FOLDING MECHANISM
Aluminum frame folds for easy travel and storage
The folding mechanism on the Premium 3 frame allows the user to carry the bike easily inside vehicles or store it in space-limited residences or offices.

Powerful Hydraulic Disc Brakes
Powerful front and rear hydraulic disc brakes with stout rotors provide consistent, controlled stops in all conditions, and prolong rim life.

Shimano 7 Speed Drivetrain
The Shimano 7 Speed drivetrain includes a 14-28 freewheel to provide a wide range of gears to suit your needs.

Large Display With Backlight
The cockpit features a large display, with a backlight for clear visibility, and provides: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Powerful Bafang Motor
The powerful 500W rear geared hub Bafang Motor peaks at 750 watts and has cadence-sensing pedal assist. The power it produces provides a peppy ride that will climb hills faster and accommodate riders of all sizes.

3-inch wide Fat Tires
Wide profile 20 x 3.0 tires provide a comfortable, stable ride and resist punctures over urban pavement or gravel paths.

Coil Spring Suspension Fork
The coil spring suspension fork accommodates a wide range of intended uses and body sizes, and includes an optional lock-out for pavement riding. Great for increased comfort on bumpy terrain!

Powerful Hydraulic Disc Brakes
Powerful front and rear hydraulic disc brakes with stout rotors provide consistent, controlled stops in all conditions, and prolong rim life.

Shimano 7 Speed Drivetrain
The Shimano 7 Speed drivetrain includes a 14-28 freewheel to provide a wide range of gears to suit your needs.

Large Display With Backlight
The cockpit features a large display, with a backlight for clear visibility, and provides: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Powerful Bafang Motor
The powerful 500W rear geared hub Bafang Motor peaks at 750 watts and has cadence-sensing pedal assist. The power it produces provides a peppy ride that will climb hills faster and accommodate riders of all sizes.

Component Overview
Electronic Details
Motor Brand

Bafang
Motor Type

Geared Rear Hub
Motor Nominal Output

500 Watts
Motor Peak Output

750 Watts
Battery Brand

N/A
Battery Voltage

48V
Battery Ah

15Ah
Battery Wh

720Wh
Battery Chemistry

Li-NMC
Battery Charge Time (from empty)

7.5 Hours
Minimum Range

30 Miles (48 Kilometers)
Maximum Range

50 miles (80 Kilometers)
Display Type

Magnum Branded VeloFox, 3.5" Diagonal, Fixed, Monochrome, Backlit LCD
Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Thumb Throttle (Sealed 12 Magnet Cadence Sensor)
Top Speed

Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only
Lights

Integrated Front Light w/Horn (20 Lux), Integrated Rear Light (20 Lux)

Mechanical Details
Frame material

Aluminum Alloy
Frame size

16.75" (42.5 cm)
Frame Type

Fork Details

Coil Spring Suspension w/Lockout
Gearing details

Shimano 7 Speed (14-28t Freewheel)
Shifter Details

Shimano 7 Speed
Crank

Alloy, 52t, 170mm
Pedals

Folding Platform
Stem

Folding Telescopic
Brakes

Hydraulic Disc Brakes
Grips

Ergonomic Faux Leather
Saddle

Padded Saddle w/Suspension
Tire Brand

20 x 3.0
Wheel size

20"
Fenders

Front and Rear Included
Chain

KMC


Measurements
Seat Tube

15" (42 cm)
Reach

17" (47.5 cm)
Stand Over Height

15.75" (40 cm)
Virtual Top Tube Length

24.5" (62 cm)
Min Saddle Height

21.75" (55 cm)
Max Saddle Height

31.5" (80 cm)
Width

25.5" (65 cm)
Wheelbase

47" (119 cm)
Length

68" (173 cm)
Total Weight

62.25 lbs. (28.25 kg)
Battery Weight

11 lbs. (5 kg)
Recommended Minimum Rider Height

5'0"

What’s Included
Kickstand

Left-side Chainstay Mount; Adjustable
Bell

Electric horn included
Charger

Included
Front Rack

N/A
Rear Rack

Included
Fenders

Front and Rear Included
Accessory Mounts

Top tube mounts for a water bottle cage (Cage/bottle not included)

Videos

Introducing the Premium III Folding Electric Bike

Magnum Premium 3 | Folding E-Bike Overview

Part Numbers

Option UPC Store SKU
Black 745808932886 210000002179
White 745808932893 210000002180
