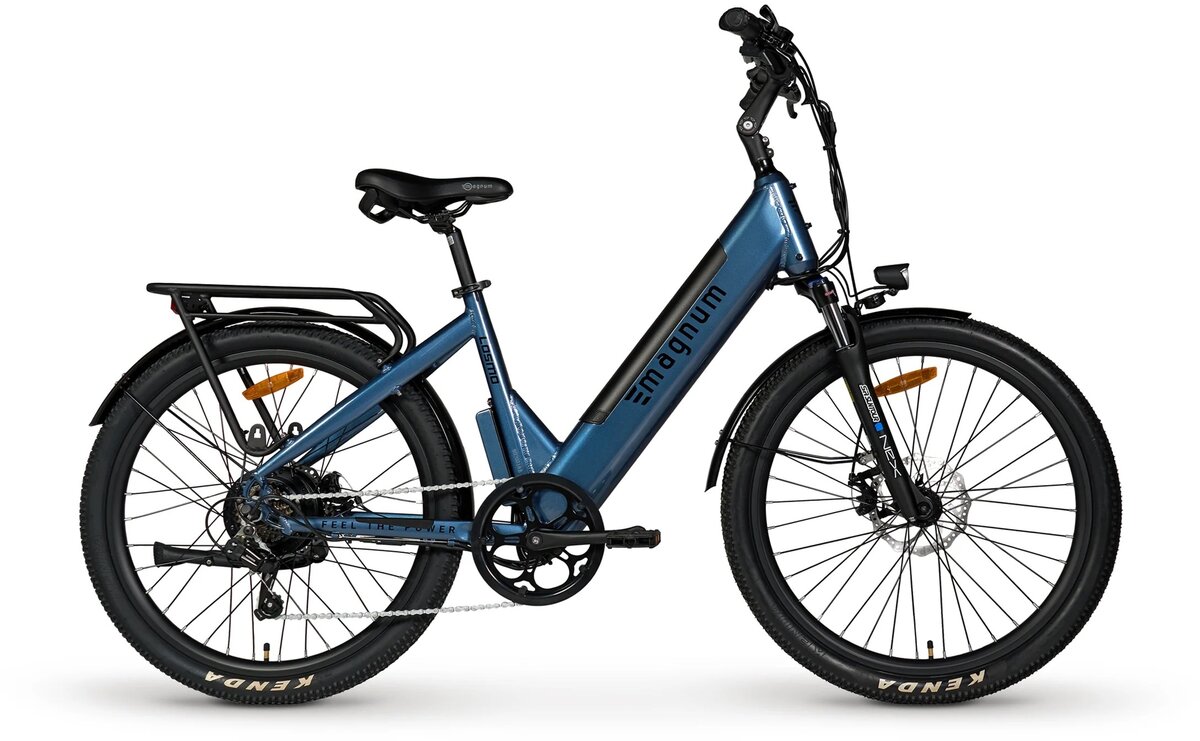

The Magnum Cosmo
The Magnum Cosmo is a budget friendly option in our popular Cosmo series. The Cosmo has a light low step frame with a fully integrated battery. The power system is 48 Volts running on a 500 Watt motor and a 10Ah battery for the range and power you need to run errands or go on a relaxing bike ride.

Highlights
Category
Touring
Class
Can be configured to a Class 1, 2, or 3 E-Bike.
Frame Type
Low-step
Seating
Relaxed
Perfect For
Paved / Light Trails / Recreation

THE BATTERY.
The heart of the Magnum Cosmo is the integrated, long-range 48V / 10Ah / 480Wh Samsung battery that powers rides up to 40 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

10Ah
40 Miles (64 Kilometers) Max Range

5 Hours Charge Time


STYLE MEETS EASE
Low-step geometry
Designed and built with the city and commuter cyclist in mind, the low-step frame design is a breeze to mount and dismount, and it comes in stylish colors with a sleek, integrated battery.

Wide, Treaded Tires
The wide 2.35" tires can handle packed gravel and dirt roads in addition to rough city streets.

Front Suspension Fork
The Suntour NVX30 suspension fork offers 80mm of travel to soak up rough pavement with ease.

Smart Front Display
Bright, illuminated display readings include 3 different levels of assist; trip; odometer includes a button to activate the front headlight

Geared Rear Hub Motor
The Bafang rear-mounted geared hub motor provides all the power you need to navigate city streets with ease, and has a maximum output of 750 Watts.

Front and Rear Integrated Lights
Integrated front and rear lights can be controlled from the front display, and allow you to see and to be seen by pedestrians and vehicles

Welded Aluminum Rear Rack
The welded, integrated aluminum rear rack is part of the bicycle frame for added strength, and it holds your gear securely.

Wide, Treaded Tires
The wide 2.35" tires can handle packed gravel and dirt roads in addition to rough city streets.

Front Suspension Fork
The Suntour NVX30 suspension fork offers 80mm of travel to soak up rough pavement with ease.

Smart Front Display
Bright, illuminated display readings include 3 different levels of assist; trip; odometer includes a button to activate the front headlight

Geared Rear Hub Motor
The Bafang rear-mounted geared hub motor provides all the power you need to navigate city streets with ease, and has a maximum output of 750 Watts.

Component Overview
Electronic Details
Motor Brand

Bafang
Motor Type

Geared Rear Hub
Motor Nominal Output

500 Watts
Motor Peak Output

750 Watts
Battery Brand

Samsung Cells
Battery Voltage

48 Volts
Battery Ah

10Ah
Battery Wh

480Wh
Battery Chemistry

Li-NMC
Battery Charge Time (from empty)

5 Hours
Minimum Range

20 Miles (32 Kilometers)
Maximum Range

40 Miles (64 Kilometers)
Display Type

Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed

25 mph with Pedal Assist, 20 mph with Throttle
Lights

Integrated front and rear light controlled from the display

Mechanical Details
Frame material

Aluminum Alloy
Frame size

18” (46 cm)
Frame Type

Fork Details

SR Suntour NEX Suspension Fork with Lockout and Preload Adjustment
Gearing details

Shimano 6-Speed
Shifter Details

Shimano 6-Speed
Crank

Aluminum Alloy, 52T, 170mm
Pedals

Wellgo
Stem

Adjustable Alloy
Brakes

Mechanical Disc Brakes
Grips

Black Faux Leather
Saddle

QF Magnum Saddle
Tire Brand

Innova 26 x 2.1
Wheel size

26”
Fenders

Front and Rear Included
Chain

KMC

Measurements
Seat Tube

18” (46 cm)
Reach

14.75” (37.5 cm)
Stand Over Height

22.5” (57 cm)
Virtual Top Tube Length

22” (56 cm)
Min Saddle Height

21.75” (55 cm)
Max Saddle Height

28” (71 cm)
Width

25.75” (65 cm)
Wheelbase

43.5” (110 cm)
Length

69.75” (177 cm)
Total Weight

57.33 lbs (26 kg)
Battery Weight

8.5 lbs (3.9 kg)
Recommended Minimum Rider Height

5’0

What’s Included
Kickstand

Single-Leg Center-Mount
Bell

No
Charger

48v/2A
Front Rack

Optional Front Rack (Not Included)
Rear Rack

Included
Fenders

Front and Rear
Accessory Mounts

Front Carrier, Front and Rear Fender, Rear Rack
