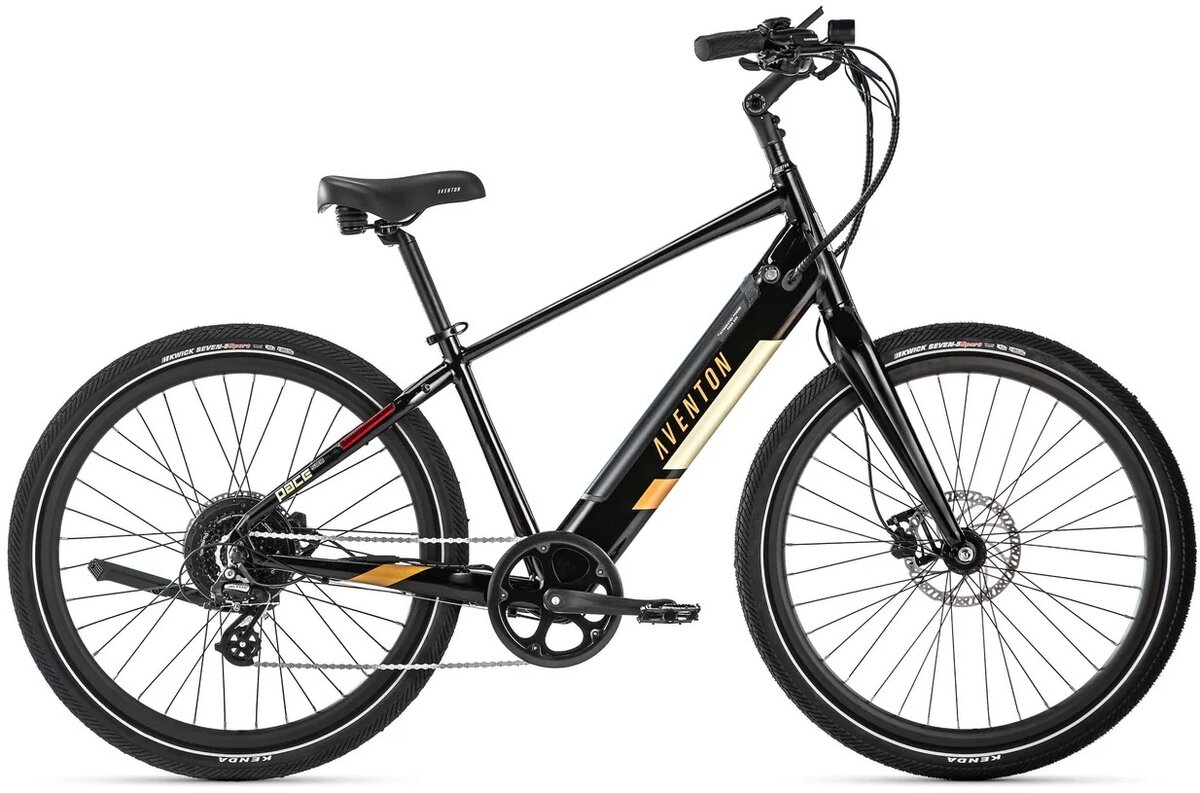

Aventon Pace 500.2

The Next-Gen Pace 500 ebike is an upgrade to its award-winning predecessor and still the ultimate balance of comfort and power. Features the upright cruiser frame geometry and handlebars that riders have come to love about the Pace plus an improved battery that is now fully integrated into the frame along with integrated rear and front lights. The perfect ebike for a casual cruise that can still pack some power.


Frame Size Regular Large
Height 5'1" - 5'11" 5'11" - 6'4"
Top Tube Length 625mm 662mm
Reach 350mm 383mm
Head Tube Length 215mm 225mm
Standover Height 733mm 770mm
Wheelbase 1094mm 1131mm
Min Saddle Height 760mm 860mm
Max Saddle Height 940mm 1000mm

Technical Specifications
MOTOR
48V, 500w Brushless Rear Hub Motor

THROTTLE
Thumb Throttle on Handlebars DISPLAY
LCD Smart Easy Read Display with Backlight, Colorful screen with app

SPEED
Up to 28 MPH on Pedal Assist BATTERY
Removable Internal Lithium-ion 48V, 12.8Ah(614Wh) with LG Cells

SENSORS
Cadence Sensor, Speed Sensor
PEDAL ASSIST
5 Levels CHARGER
48V 3 Amp Fast Charger, 4-5 Hour Charging RANGE
25-48 Miles Average

FRAME
6061 Single-Butted Aluminum Alloy with Internal Battery WEIGHT
52lbs PEDALS
9/16" Alloy Platform

WEIGHT LIMIT
Maximum Payload Capacity: 300 lbs FORK
AE-E08 PACE V2 AL fork BOTTOM BRACKET
Square Taper, Sealed

CRANKSET
170mm w/46T BRAKES
Hydraulic Disc Brakes REAR DERAILLEUR
8 Speed

CASSETTE
12-32T, 8 Speed SHIFT LEVER
8 Speed Trigger CHAIN
8 Speed

RIM
Double Wall Aluminum 36h Front & Rear SPOKES
Black Stainless 13 Gauge Front/12 Rear TUBES
Butyl Rubber, Schrader Valve 27.5x2.2

HUBS
36H Disc Nutted Front and Rear TIRES
27.5x2.2" Ebike Rated, Reflective Sidewalls SADDLE
Aventon by SelleRoyal

SEATPOST
Forged Alloy, 30.9mm, 2-Bolt Clamp HEADSET
VP Sealed Bearing Headset SEAT CLAMP
Quick Release

HANDLEBARS
Aluminum 31.8 15 Degree Sweptback GRIPS
Ergonomic Comfort STEM
Threadless, Adjustable 31.8mm
