Details
Motan E-trike Series
Upgrade
All Motan series electric trikes have upgraded with the latest EB 2.0 system and most importantly, the battery capacity has expanded from 17.5Ah to 20Ah. Additionally, each mechanical component is more aesthetically pleasing, comfortable, and of high quality.
Redefine Your Lifestyle
With a new long-range battery and an energy-efficient motor, the 2023 version of Grandtan M-340 e-trike extends its maximum range by approximately 73% to help expand your adventure. The thrill of long rides is more accessible than ever!
Built To Comfort Your
Every Ride

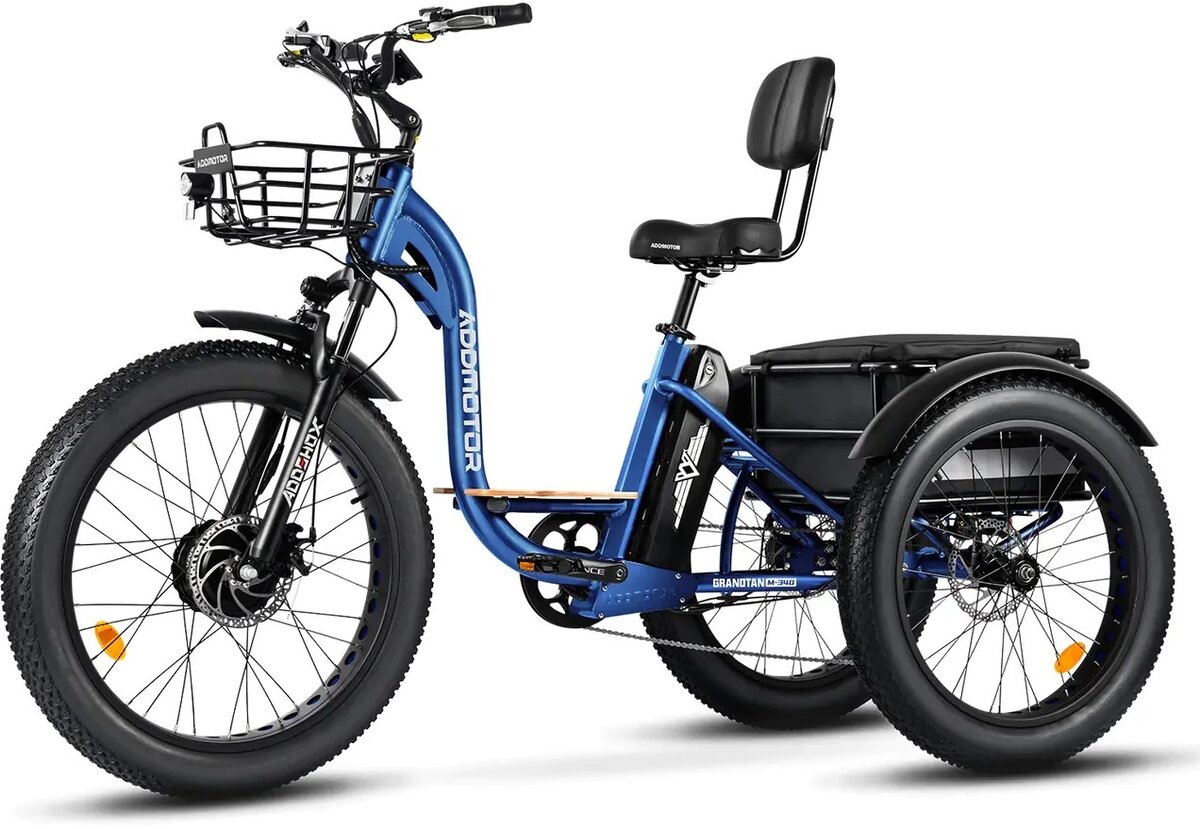

The upgraded Grandtan M-340 model is a full-featured fat tire electric tricycle, including a wide, butterfly-like, eco-friendly wooden footrest to fully support your feet, an adjustable handlebar, an ergonomic saddle with backrest, and 4-inch fat tires with great shock absorption capacity. Compared to the old one, it improves riding comfort by at least 30%.
4.0 Inch
Kenda
Fat Tires
4-inch Kenda fat tires, with layers of inner tube protector, high-volume inner tube and anti-slip cover tire, boost riding comfort and have better rollover capability & durability. Grandtan M-340 fat tire e-trike is ready for most types of terrains, including sandy beaches.
750W
Front-Mounted Motor
A 750W front-mounted motor makes the e-trike much more stable and helps maintain a better balanced state with fast acceleration. Additionally, it has a better heat dissipation performance to improve the efficiency of electrical energy utilization.
Max Motor Torque: 80Nm
Peak Motor Watts: 1,000W
20.0Ah High Capacity
Samsung Battery
Grandtan M-340 fat tire e-trike is adapted to the EB 2.0 battery, the world's first 48V*20Ah UL-certified battery. It ensures an estimated max range of 85 miles with PAS 1 mode (8 MPH) and a safer and more reliable riding experience.
Charging Time: 9-10 Hrs
Per Charge: 40-85 Miles
Up To 85+
Miles Riding Range
The most notable 2023 electric trike model M-340 combines all of Addmotor's electric tricycle advantages, providing you with the most impressive experience.
Addmotor
5 Inch LCD Display
Provides riding information of battery usage, mileage, speed, lighting usage, PAS level, current motor wattage, etc. This makes your ride safer and easier to control.
Integrated Headlight & Taillight
Grandtan M-340 model’s headlight & taillight are powered by the main battery pack and controlled by the uneven buttons, contributing to an integrated control system. Together, the lights have a 360° side view, ensuring you riding safety at night.
40-Lumen Headlight
200m Visual Range
Adjustable Light Brightness
IPX5 Waterproof Grade
EB 2.0
LIGHT SYSTEM
EB 2.0 lighting system comes with a multi-functional taillight, delivering the driving, danger, flashing, braking, and left & right turning signals. Please note that the braking light will automatically be activated when you apply the brakes.
Tektro Mechanical
Disc Brake With
Motor Cutoff Sensor
Grandtan M-340 e-trike is equipped with a full-wheel Tektro mechanical disc brake system with an automatic motor cutoff sensor. It produces strong friction on the rotors when applying the brake levers, allowing you to slow or stop quickly.
180mm F / 2*180mm Rear Brake Rotors
Motor
Bafang 48V*750W Front Brushless Hub Motor, 80 Nm Torque
Battery
Samsung 48V*20Ah(960Wh) with 3200 Cells Battery, Charging Time 10 Hours, Rated For 1,000-1,500 Charge Cycles
Display
Addmotor 5-Inch LCD Display
Controller
Addmotor 25A Controller
Throttle
Right Hand Half Twist Throttle with Switch
Lights
Front: Electric Headlight TRENDO by Spanninga
Rear: Electric Taillight & Braking Light SOLO by Spanninga
USB Port
Integrated in Display, 5V, 1Amp
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 7 Level Pedal Assist, Cadence Sensor
Charger
48V 2.5A US Standard DC Smart Charger
Range
85+ Miles Per Charge with PAS 1(Estimate)
Videos
Grab Your Brand-new Addmotor E-trike and Throw A Party with Your Friends!
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Neptune Blue | EB3474-20 | 210000001946 |
Pearl White | 210000001945 | |
Army Green | 210000001947 | |
Rose Gold | EB3473C-20 | 210000002399 |
Cyan Green | 210000002148 | |
Starry Blue | 210000001944 |
